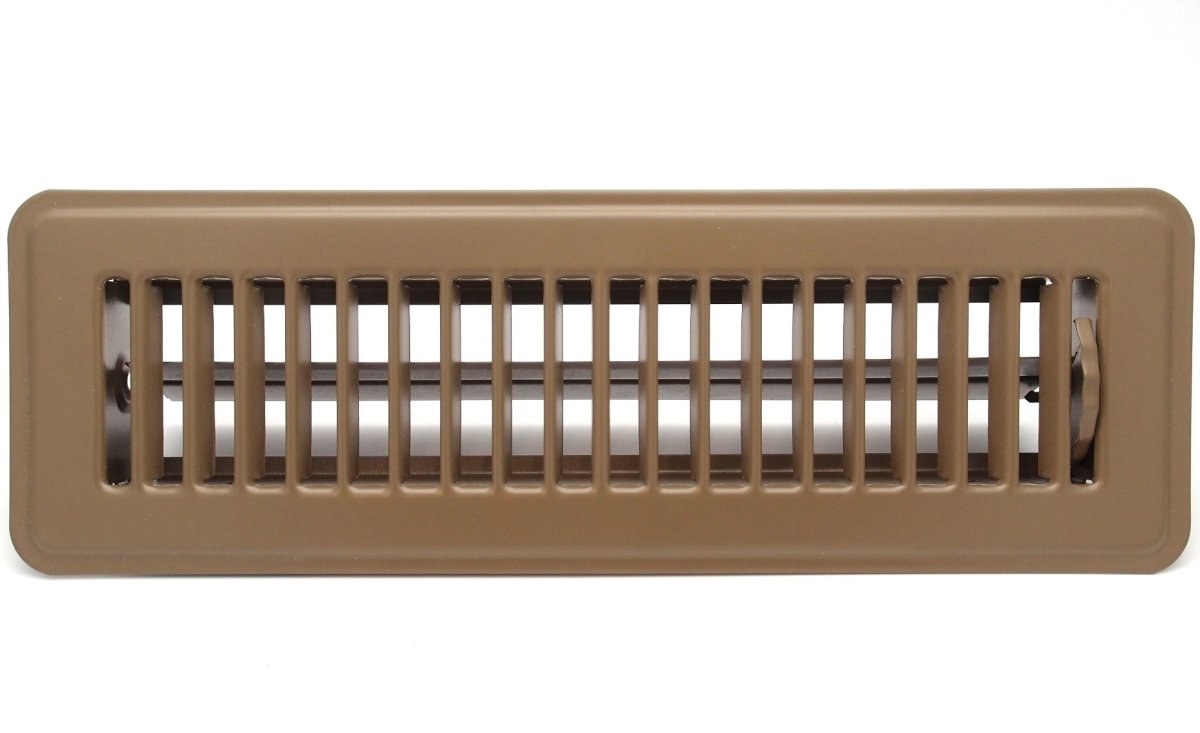

4" X 12" Floor Register with Louvered Design - Heavy Duty Rigid Floor Air Supply with Damper & Lever - Brown

  • 4" X 12" Is The Size For The Duct Opening Measurement Only, Actual Front End Outer Dimensions Are 5.5" X 13.5" - SEE BELOW IN DESCRIPTION HOW TO MEASURE A GRILLE
  • Damper With Lever for Easy Cntrol of Airflow - Lever Is Easily Operated by Foot
  • Rigid Extra Heavy Duty to withstand constant walk on situations - Quality Packaging - Carefully Shrink Wrapped With Cardboard Backing To Prevent Damage In Shipment
  • Smooth Surface Edges - Run Your Fingers Across The Surface To Feel The Smoothness
  • Easy Unrestricted Air Flow For Your HVAC System
4" X 12" Floor Register with Louvered Design - Heavy Duty Rigid Floor Air Supply with Damper & Lever - Brown
4" X 12" Is The Size For The Duct Opening Measurement Only, Actual Front End Outer Dimensions Are 5.5" X 13.5" - SEE BELOW IN DESCRIPTION HOW TO MEASURE A GRILLE


You may think of grilles and registers as a generic component of the ventilation system in your house. But they are also the most visible representation of you air system.
These grilles and registers give you an extra measure of quality that are visible to your family members and house guests.

High Standard
Every part is hand inspected for quality before it is packaged, no exceptions.
No Sharp Surface Edges. Just run your finger along the edge of the top plate and you will find a smooth finished surface.
Rigid Gauge Steel. Rigid gauge built for durability and long life in mind, but still light and handy.
Powder-Coat Finish - Smooth, Shiny, Scratch-Resistant, Beautiful. Looks Like It Was Just Waxed
Quality Packaging - Carefully Shrink Wrapped With Cardboard Backing To Prevent Damage In Shipment
Easy Unrestricted Air Flow For Your HVAC System


How To Measure A Grille
Overall Size:
Measure the size of the air duct/drywall opening. Do not measure the overall size of the register itself, only measure the "hole" in the wall/duct. Every grille has a front end frame, that will overlap at wall joint.
Total outer size of this grille is; listed size +1.5".

CSFR412B

Product Overview

4 in

12 in

5.5 in

13.5 in

Full Specifications

?

Inside Width

?

4in

?

Inside Length

?

12in

?

Outside Width

?

5.5in

?

Outside Length

?

13.5in

?

Type

?

Supply Grille

?

Material

?

steel

?

Color/Finish

?

Brown

?

Airflow Strength

?

Maximum

?

Powder Coated

?

Yes

?

Installation Location

?

Sidewall & Ceiling

?

Returnable

?

30 Days

?

?

How To Measure A Grille

Overall Size

Measure the size of the duct opening. Do not measure the old vent cover. If your duct opening is 14" wide by 20" tall, order a 14x20

Height vs. Width

The first number in a grille size represents the width, the secondnumber represents the height.

Installation

HVAC Installation FAQs.

You should replace your HVAC filters every 30 days to keep your air healthy and your HVAC system running efficiently. To help you, here’s a simple guide to changing your filters for vent registers:

1. Turn your HVAC unit off.

2. Slide the tabs to open the door on your air filter grille to access the filter.

3. Remove the used or dirty filter.

4. Before installing your new filter, ensure the airflow arrows are pointing in the direction of your unit.

5. Once the filter is installed, close the door on your air filter grille.

6. Turn your HVAC unit on for clean, healthy air.

For our full catalog of filters — including our pleated MERV 8 products — click here.

A 24x24 ceiling return air grille will need a larger frame. For example, if your grille is 24x24 it will in all probability have a 26x26 diameter. This means that the grille will need a 24x24 hole and a 26x26 frame to fit properly.

Installation

Turn off your HVAC unit. Wear protective goggles to keep any dust or dirt particles from falling from the ceiling return air grille and into your eyes. Secure your ladder and then unscrew the frame to remove the grille. Next, put the frame in place and secure it with screws. Install the new grille to complete the task.

Click here to browse our comprehensive catalog of sidewall and ceiling supply return grilles.

First off, a 20x20 decorative air return grille will require a larger frame for optimum installation. This means that a 20x20 decorative air return grille with 22x22 dimensions will need a 20x20 hole and a 22x22 frame to fit properly.

Once you've got the sizes sorted, unscrew the frame and then take out the grille. Next, put the frame in place and secure it with screws. Once that’s done, install the new grille to complete the task.

For high-quality products with visual appeal, browse our full range of air return grilles.

1. Measure the size of the vent hole and the frame to ensure you purchase the correct grille size. A return air filter grille with a 20x20 size and 22x22 dimensions will require a 20x20 hole and a 22x22 frame.

2. Unscrew the frame and then remove the grille. Position the frame and secure it with screws. Once the frame is in place, install the new grille to complete the task.

Browse our comprehensive catalog of return air filter grilles here

Correct! The grille requires a 12 x 12 hole with a larger frame.

Check out our comprehensive range of wall vent grilles.

Screw out the old grille, and then unpackage and screw in your new grille. All HVAC Premium grilles come with either black or white hex head screws to match the color of your grille. If you're installing a filter model, you'll need to open the filter grille and find the holes at the sides to screw into the wall. Once you close the filter door, the screws won't be noticeable.

Click here to view our catalog which comprises of a comprehensive range of grilles

The most commonly used material is steel because it's strong and economical. However, if your grille is located in a humid place — such as next to a sauna, swimming pool, or in a bathroom — plastic or aluminum materials are the common materials used. Plastic, however, is at a disadvantage as it lacks strength and can discolor over time. Your best bet for areas with high humidity is aluminum. HVAC Premium has a wide range of aluminum grilles, from Cubic Core to perforated — you can view our selection here.

To find out more about our aluminum Cube Core grilles, click here.

The steel return air grille is not completely flat. The front service is around ~0.4 inches from the wall, where it covers the opening of the duct.

We've got a massive range of return air grilles, which you can browse here.

Why HVAC Premium?

You may think of grilles and registers as a generic component of the ventilation system in your house, but they are also the most visible representation of your air system. With HVAC Premium you get an extra measure of quality that will be visible to your family members and house guests.

Additional Information

Installation Document Coming Soon
