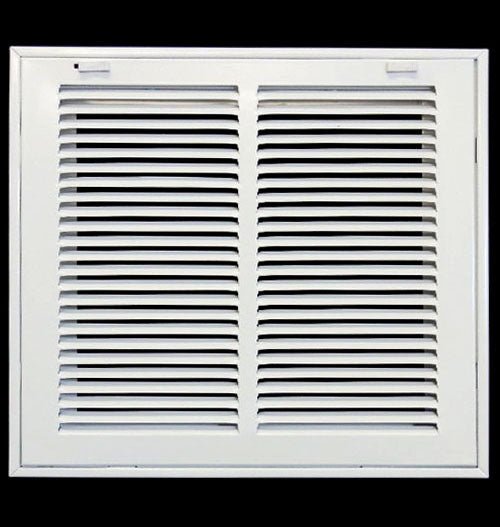

• Size – 10"w X 8"h is the size for the duct opening measurement only, actual front end outer dimensions are approximately 12 5/8" width X 10 5/8" height
• Actual Filter Size – 9 3/4"w x 7 3/4" x 1"
• High Quality – High quality solid stamped steel with counter-sunk screw holes (screws included) and no sharp edges
• Installation Location – Sidewall and ceiling

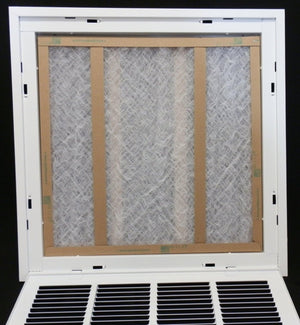

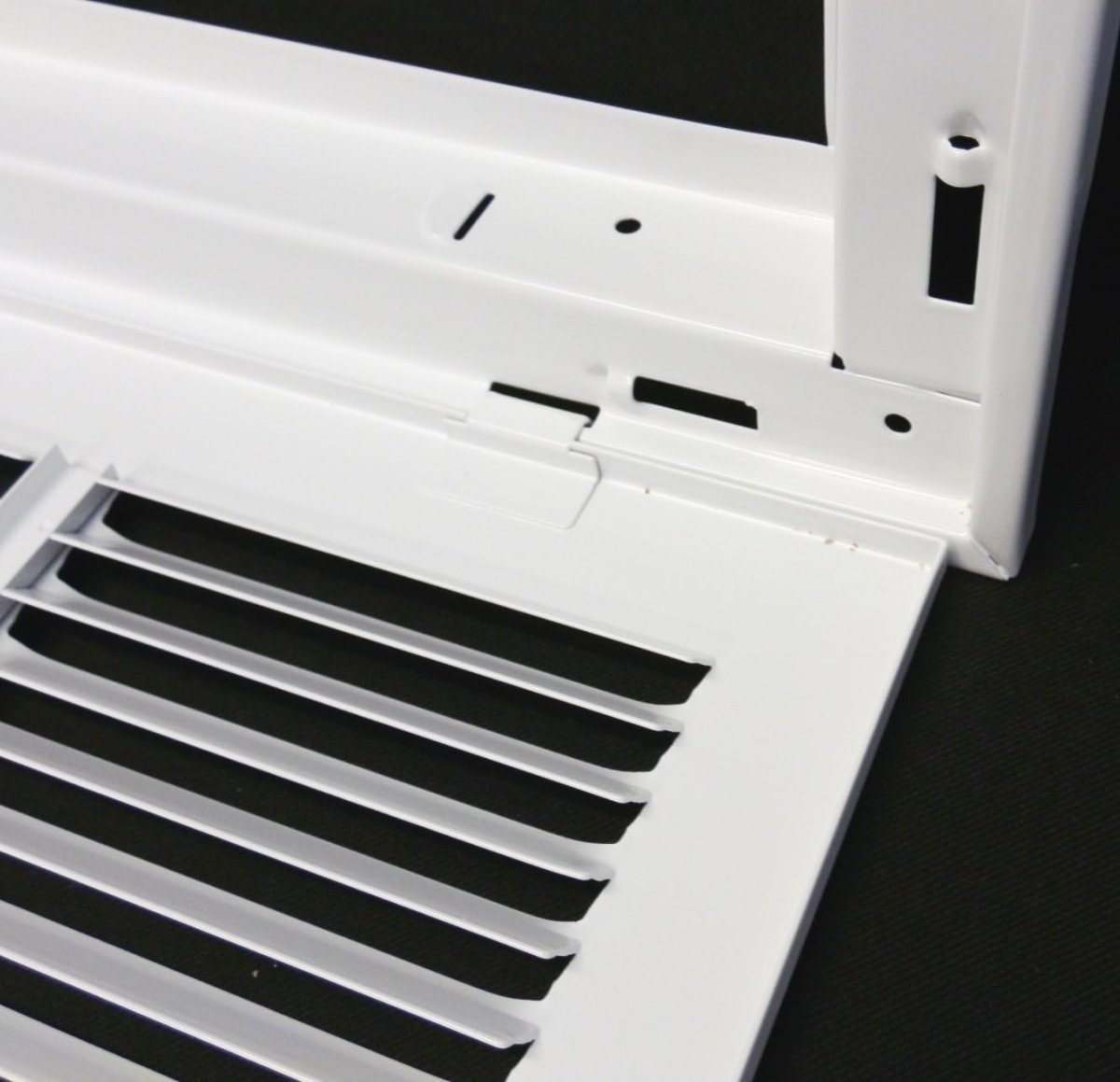

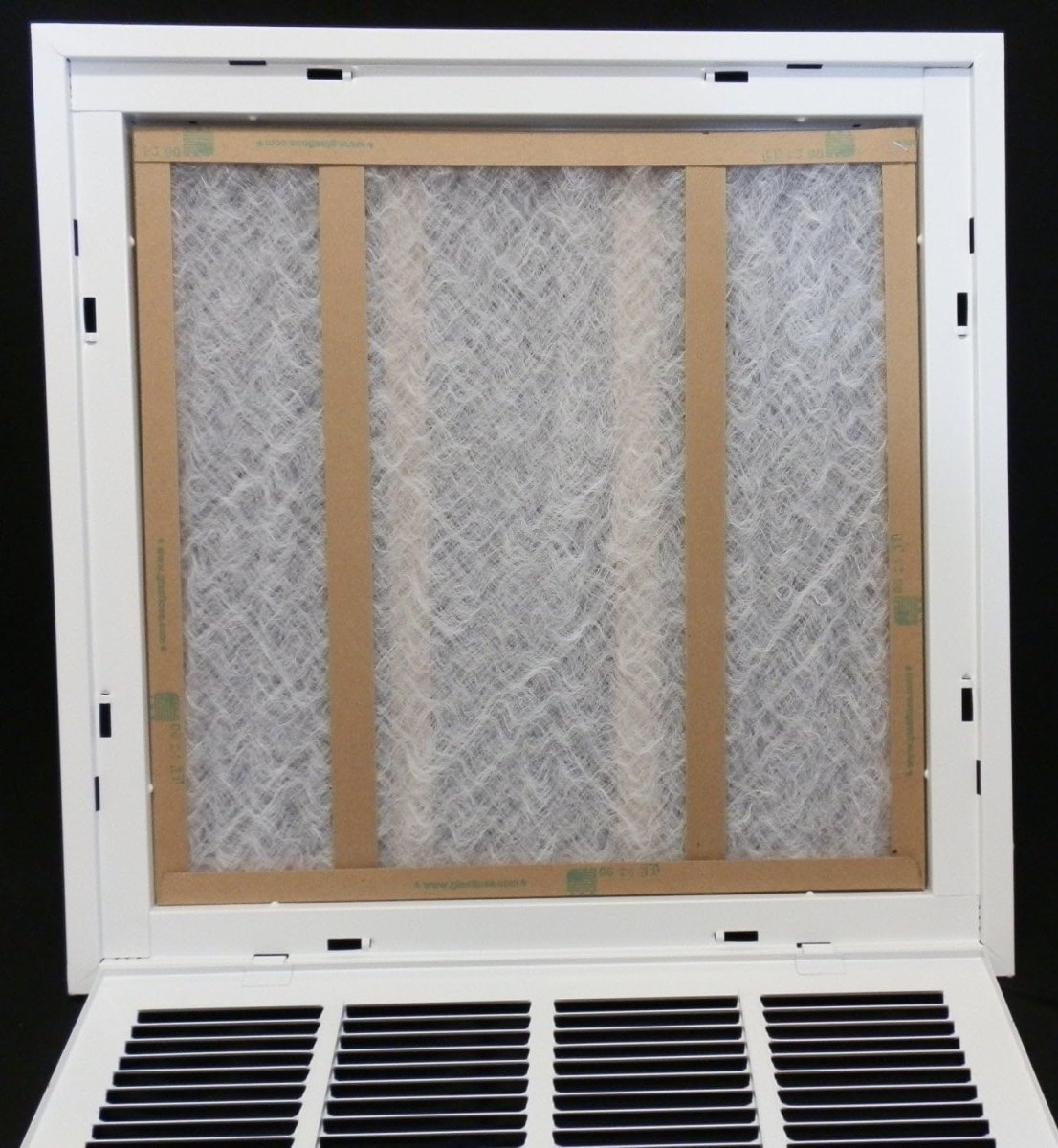

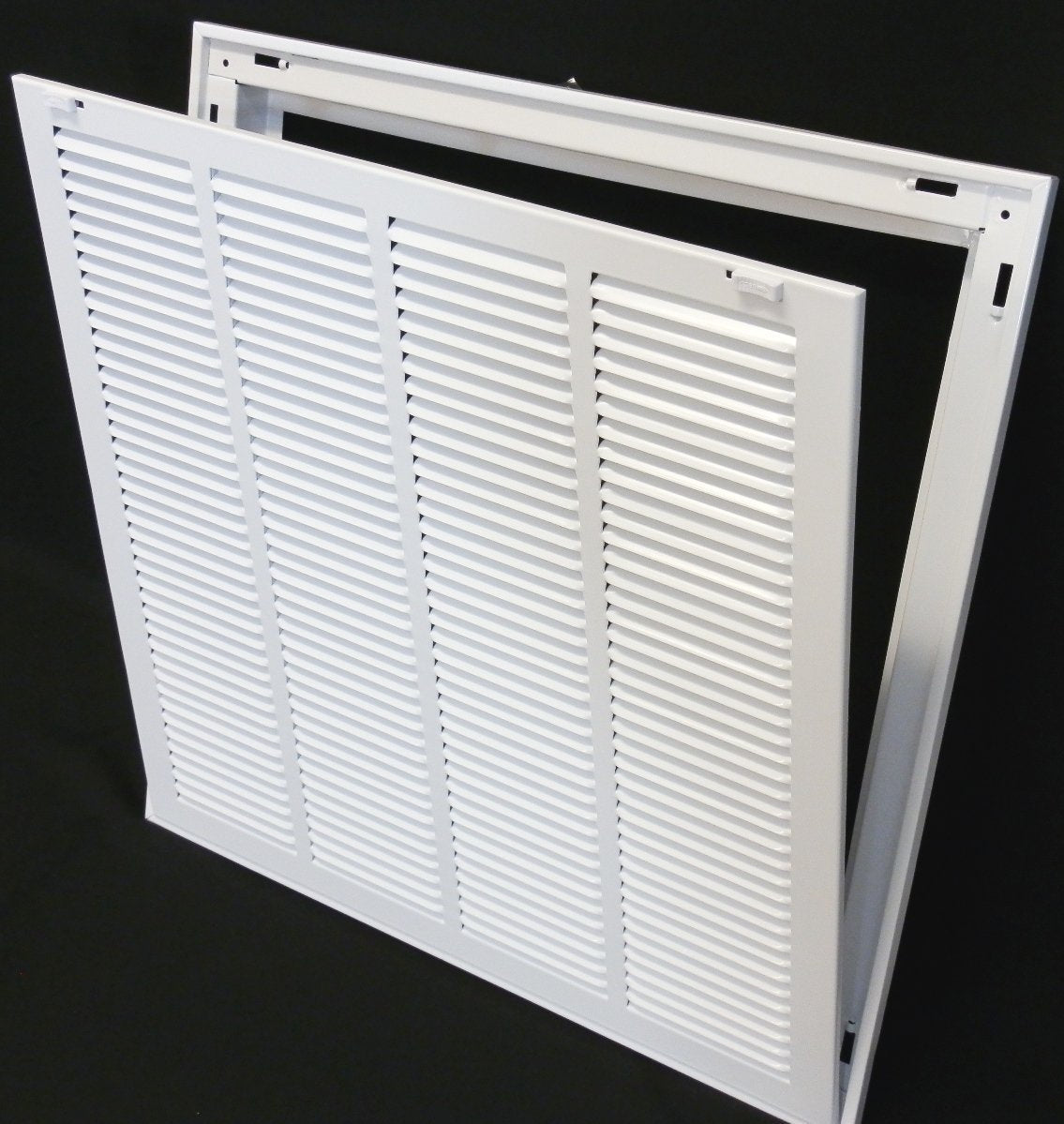

• Design – Removable door/face for easy filter change & cleaning - uses a 1" thick filter. Our filter grille latch is easy to use on your fingers and requires no screwdriver to open. Noise free components - No vibrating louvers etc.
• Quality Packaging – Carefully shrink wrapped with cardboard backing to prevent damage in shipment.
• Powder-Coat Finish – Smooth, shiny, scratch-resistant, beautiful. Looks like it was just waxed.

Upgrade your ventilation with our premium grilles and registers, featuring a sleek ½” fin design. Customize effortlessly with a removable face/door, simplifying maintenance. Designed for a 1" thick filter, this model ensures top-notch air quality. With precise measurements for seamless integration, our product offers both aesthetic appeal and efficient airflow. Elevate your space with hassle-free functionality and experience superior ventilation today.

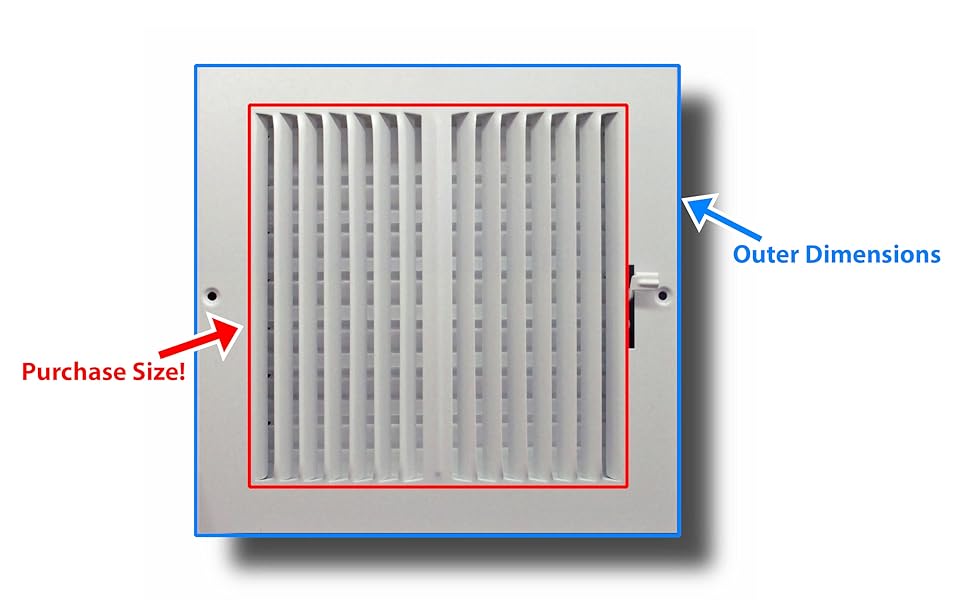

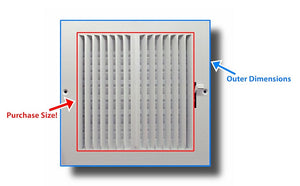

Overall Size:
Measure the size of the air duct/drywall opening. Do not measure the overall size of the register itself, only measure the "hole" in the wall/duct. Every grille has a front end frame that will overlap at the wall joint. The total outer size of this grille is the listed size plus 2 and 5/8".

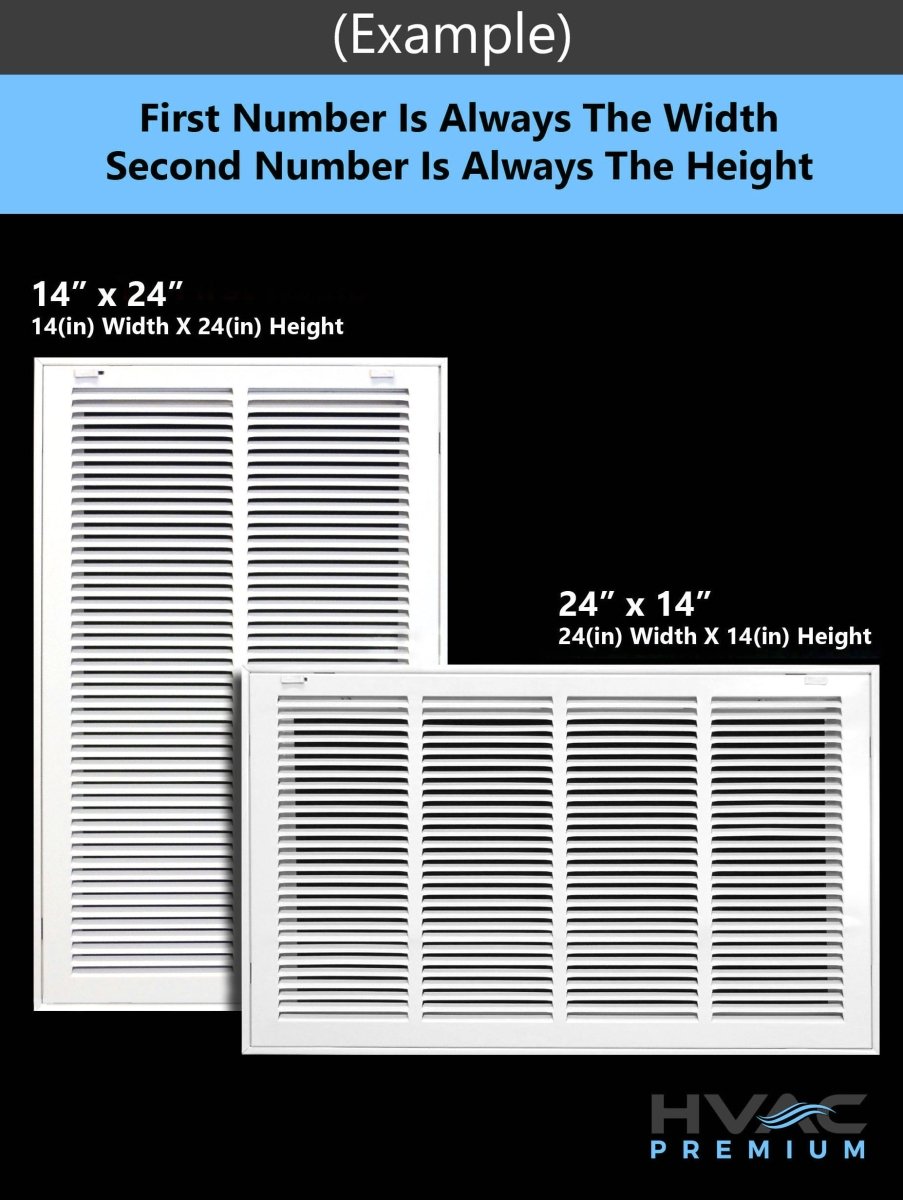

Width vs Height:
The first number in a grille size represents the width, and the second number represents the height. For example, if your hole is 20" wide by 14" tall, order a 20x14 grille. If your hole is 14" wide by 20" tall, order a 14x20 grille.

HVAC Premium has been providing superior quality service for many years. We pride ourselves on offering top-of-the-line products that meet the highest standards. With our extensive selection of Grilles, Registers, and Diffusers, we have assisted countless contractors, DIY projects, and home improvement remodeling specialists in completing their masterpieces. If you are looking to enhance your project with a top-of-the-line unit, look no further than HVAC Premium.

We carry sizes the big box stores don't, ensuring that you find the perfect fit for your ventilation needs. We are proud to have served over 5,000,000 satisfied customers!
